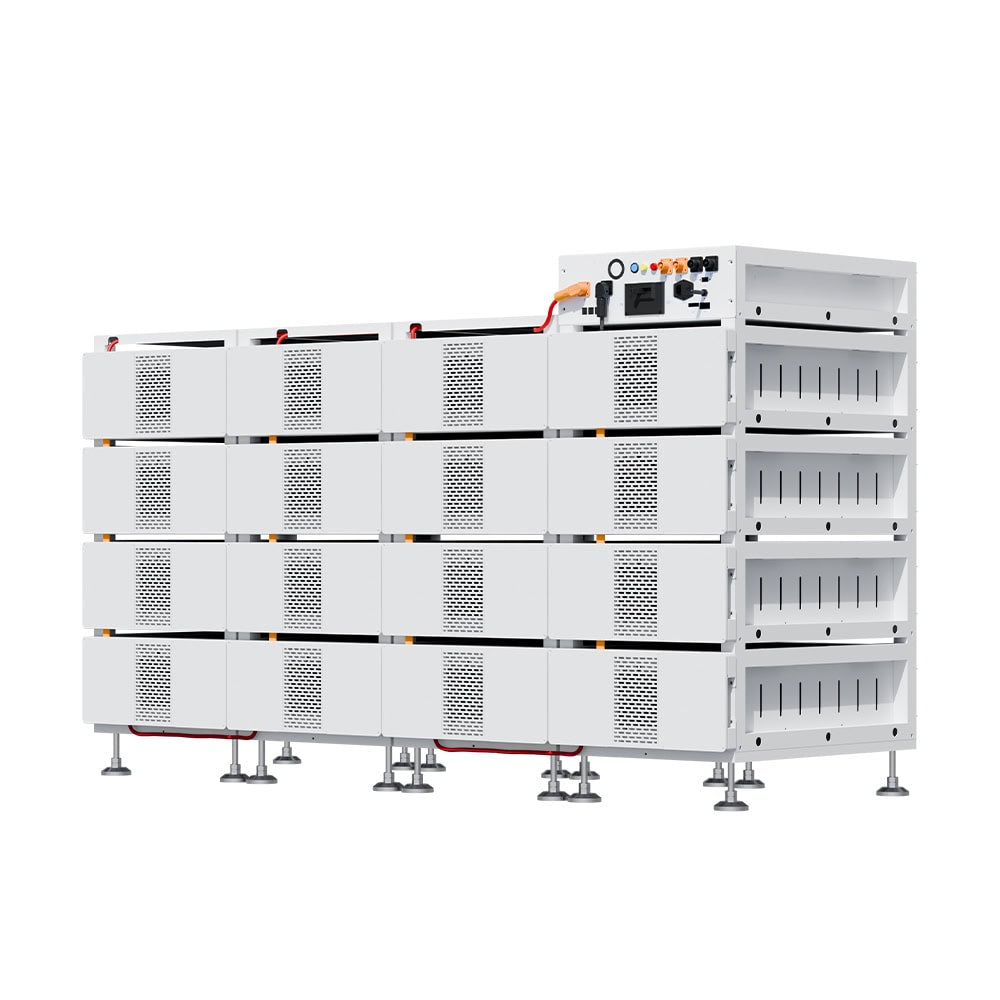

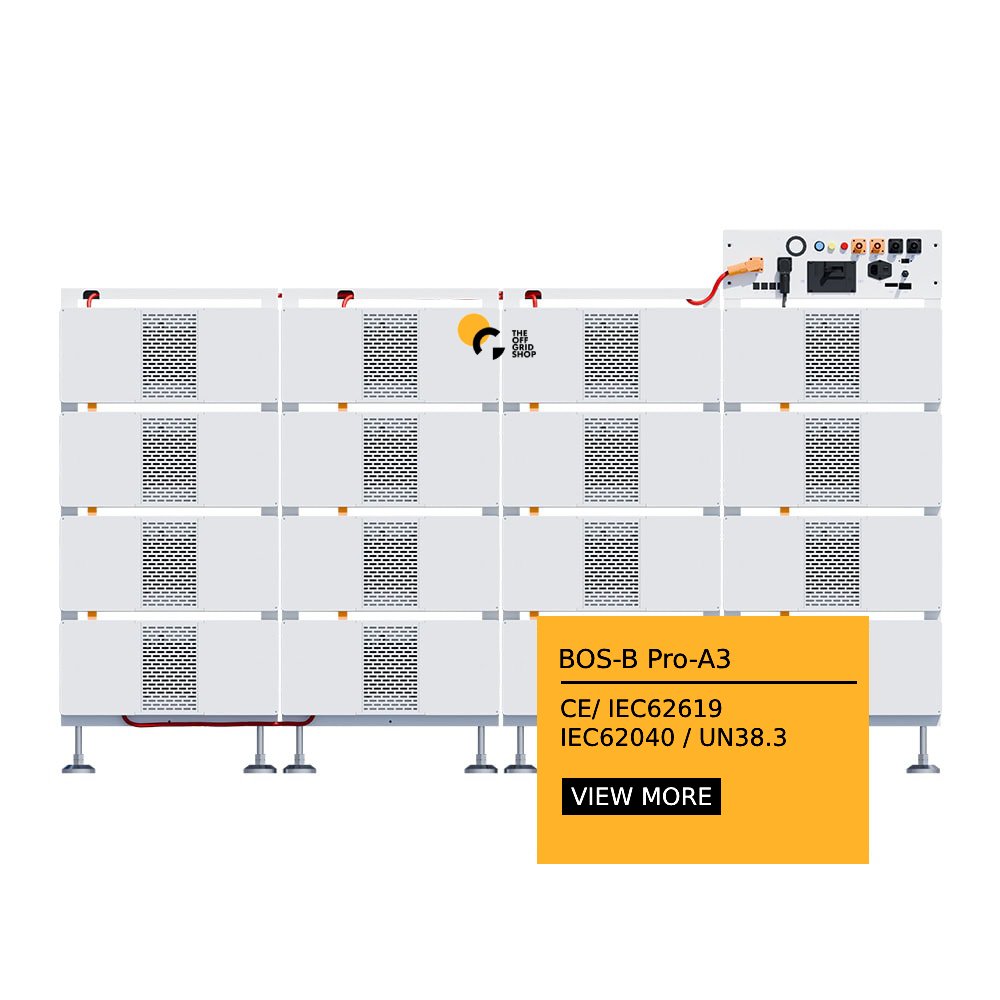

BOS-B Pro-A3

BOS-B Pro-A3

The Off Grid Shop
$0.00
$0.00
Tax included.
- +
  • Modular and scalable: 5–16 battery modules in series; PCS scalable from 100 kW/125 kW up to 2.5 MW
  • High energy capacity: 257.23 kWh nominal, 231.51 kWh usable (recommended 90% DoD)
  • Fast switching: STS seamless transfer in ≤20 ms; independent high‑power paths for grid, diesel, and load
  • High efficiency: PCS efficiency ≈ 98.5%; MPPT performance > 99%
  • Robust battery module: 16.08 kWh per module, 51.2 V, 314 Ah
  • Rack‑mounted design: Compact footprint (2150 × 1305 × 800 mm); system weight ≈ 2240 kg
